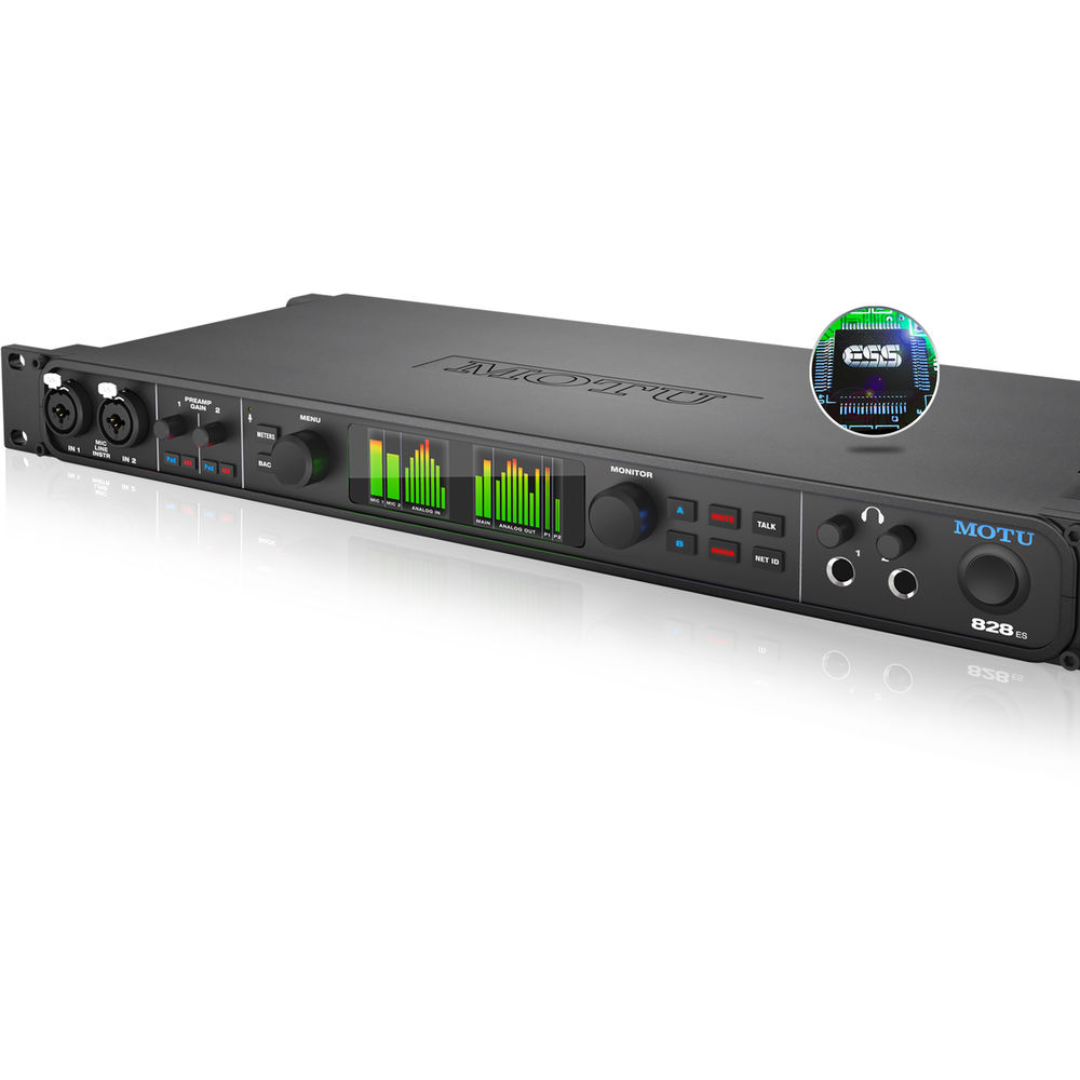

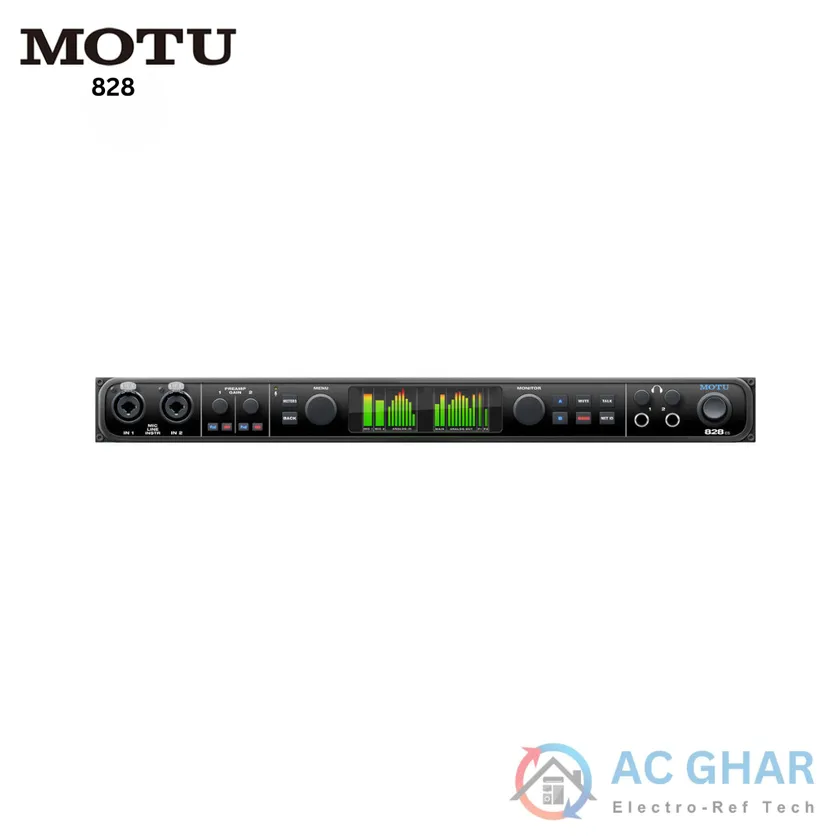

MOTU 828 (9390) 28x32 USB 3 Audio Interface for Mac

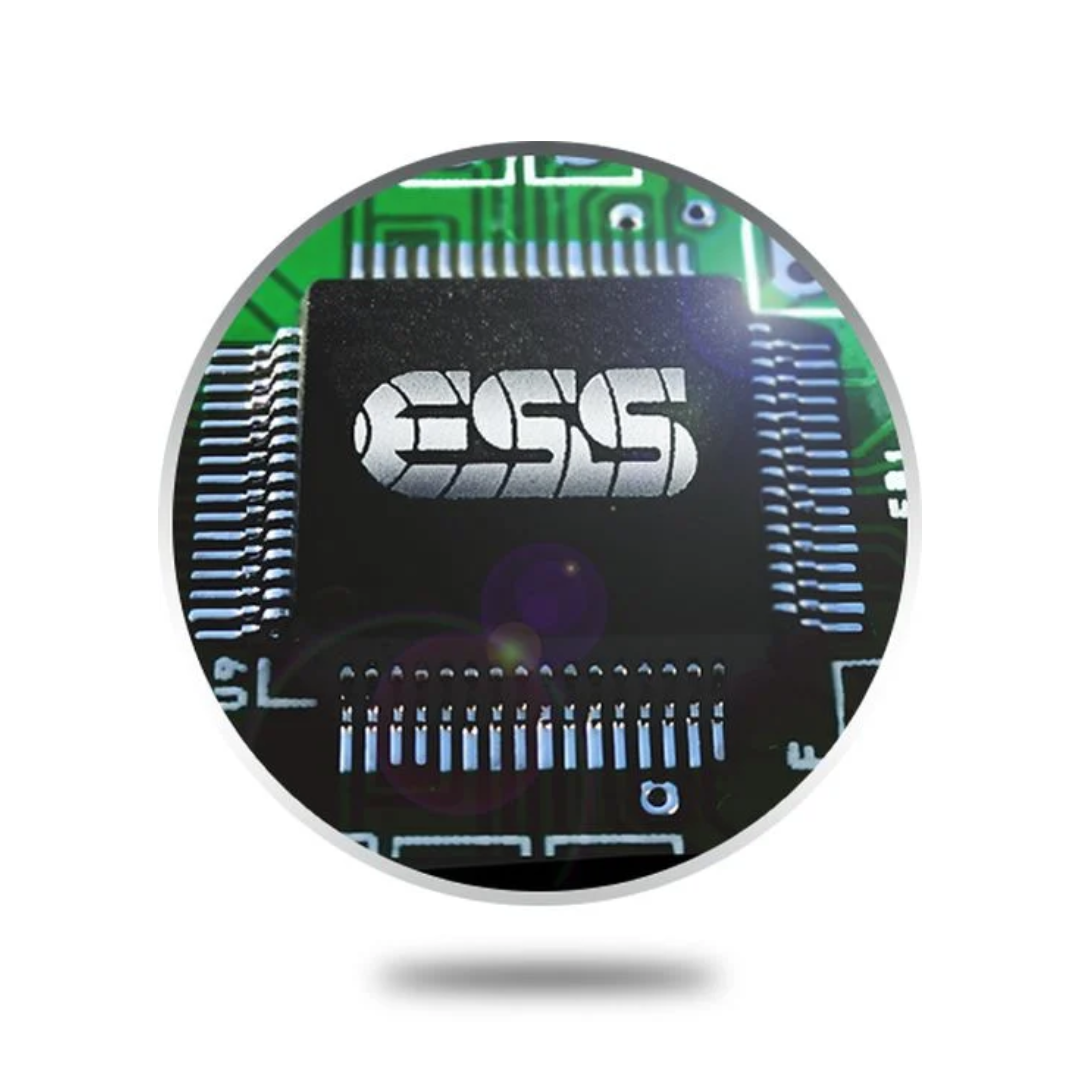

The MOTU 828 USB 3.0 Audio Interface features an ESS Sabre32 DAC, dual color displays, and 123dB dynamic range for pristine sound. It offers ultra-low 1.6ms latency at 96kHz, 60 audio channels, and two premium mic preamps. With AVB networking and versatile digital connectivity, it works as a standalone mixer or with wireless control. Its DSP-driven 48-channel mixer and high-quality effects make it a perfect studio centerpiece.

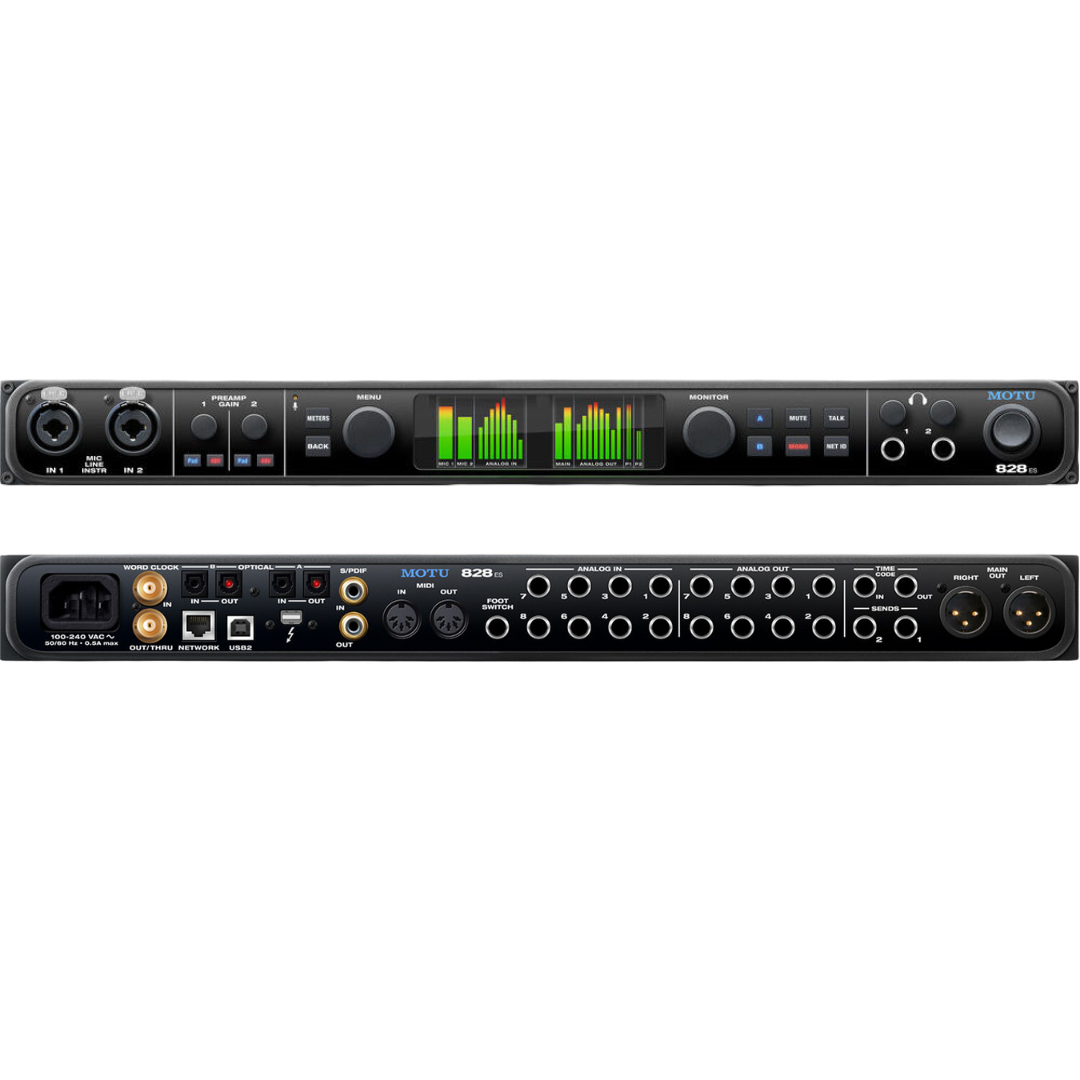

The MOTU 828es delivers premium sound with ESS Sabre32 DAC, offering 123dB dynamic range and top-tier analog quality. It achieves ultra-low latency of 1.6ms via Thunderbolt and 1.9ms via USB with optimized drivers. This single-rack unit includes two mic preamps, eight analog inputs/outputs, dual XLR outs, and two headphone outputs. It also provides 16 ADAT channels, stereo S/PDIF, MIDI, and word clock I/O for versatile studio connectivity.

The MOTU 828es features a powerful DSP mixer with 48 channels, 7 stereo buses, 3 groups, and 32 network inputs. It offers 32-bit floating-point effects including Classic Reverb, 4-band British EQ, and LA-2A style compression. Routing is highly flexible, allowing any input to be sent to any or multiple outputs with zero latency. Its DSP engine provides exceptional headroom and studio-quality sound for professional mixing and effects.

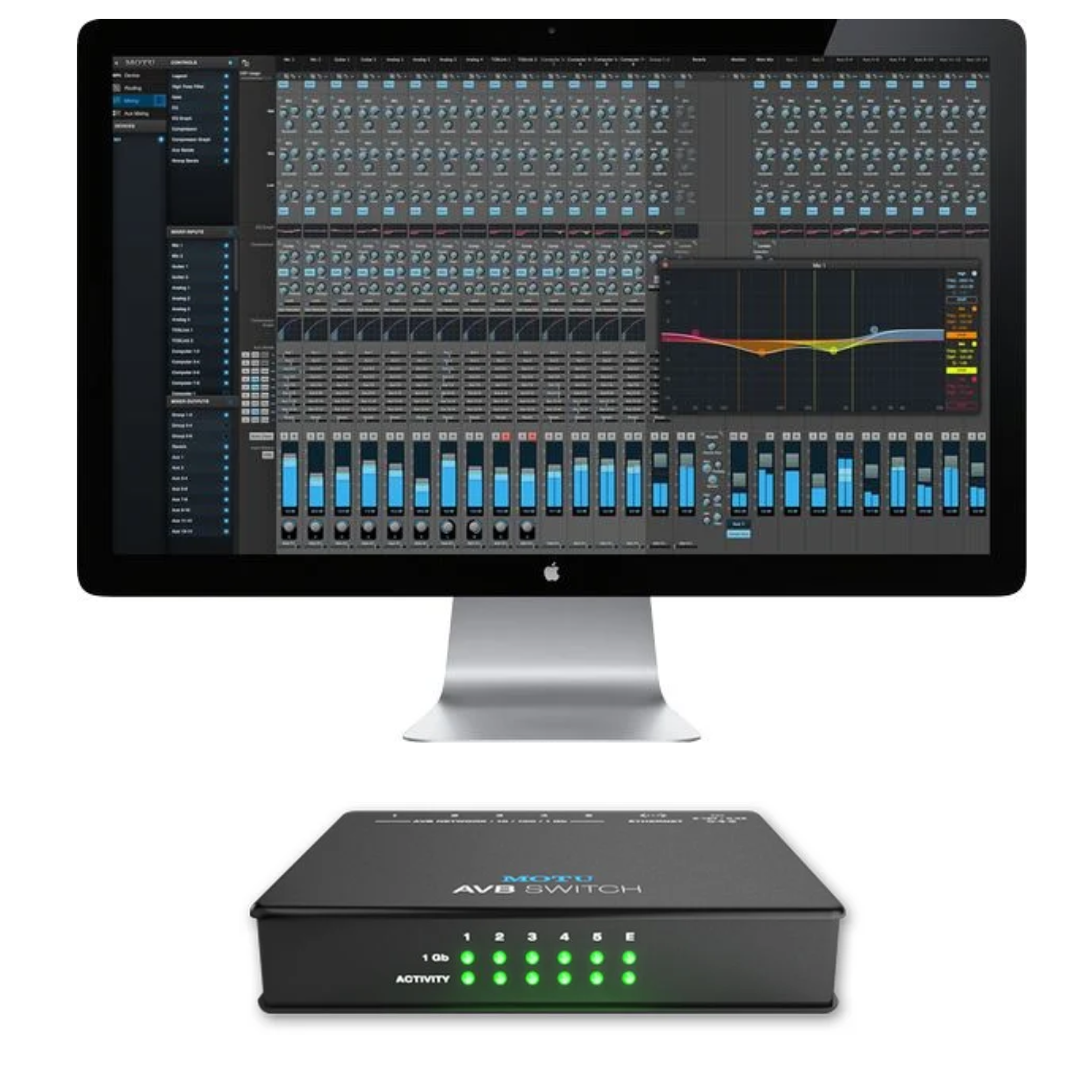

The MOTU 828es can connect with other MOTU AVB interfaces via a simple Ethernet cable or AVB switches. Using AVB switches, you can build a network of up to five units, linking hundreds of I/O channels across rooms. Its built-in DSP mixer offers 48 channels, 7 stereo buses, 3 groups, and 32-bit effects with zero-latency routing. Features include Classic Reverb, 4-band British EQ, and LA-2A-style compression with exceptional sound quality.
