EVOLUTIONALLY
A combination of rubber packing and screwed metal body offers gas-tight and rigid connection without brazing. Patented "Leverage Method" mechanically holds the pipe and prevents it from pull-out.
1 of 3

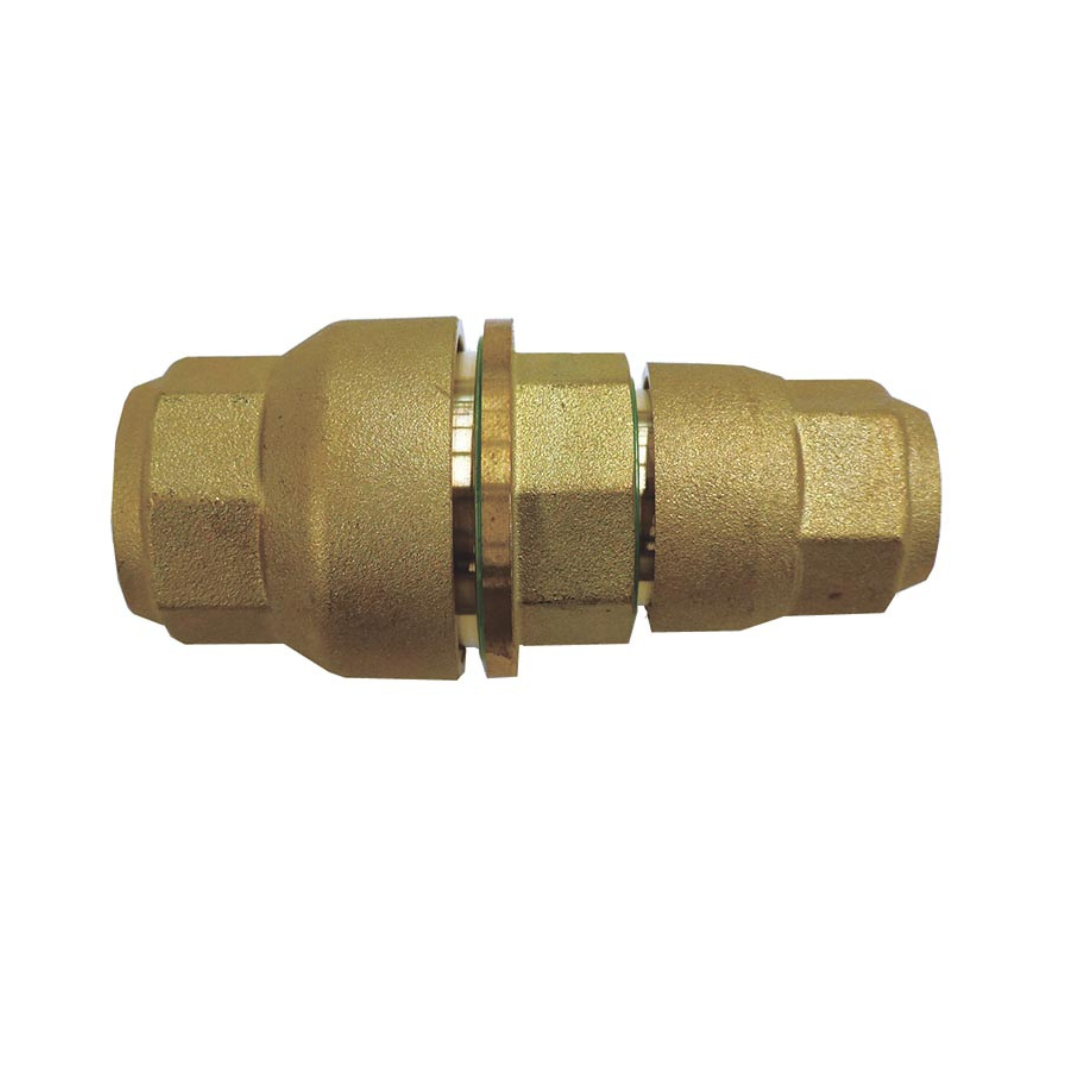

About Daikin Gas Tight Standard Joints Line up-SDGTB22

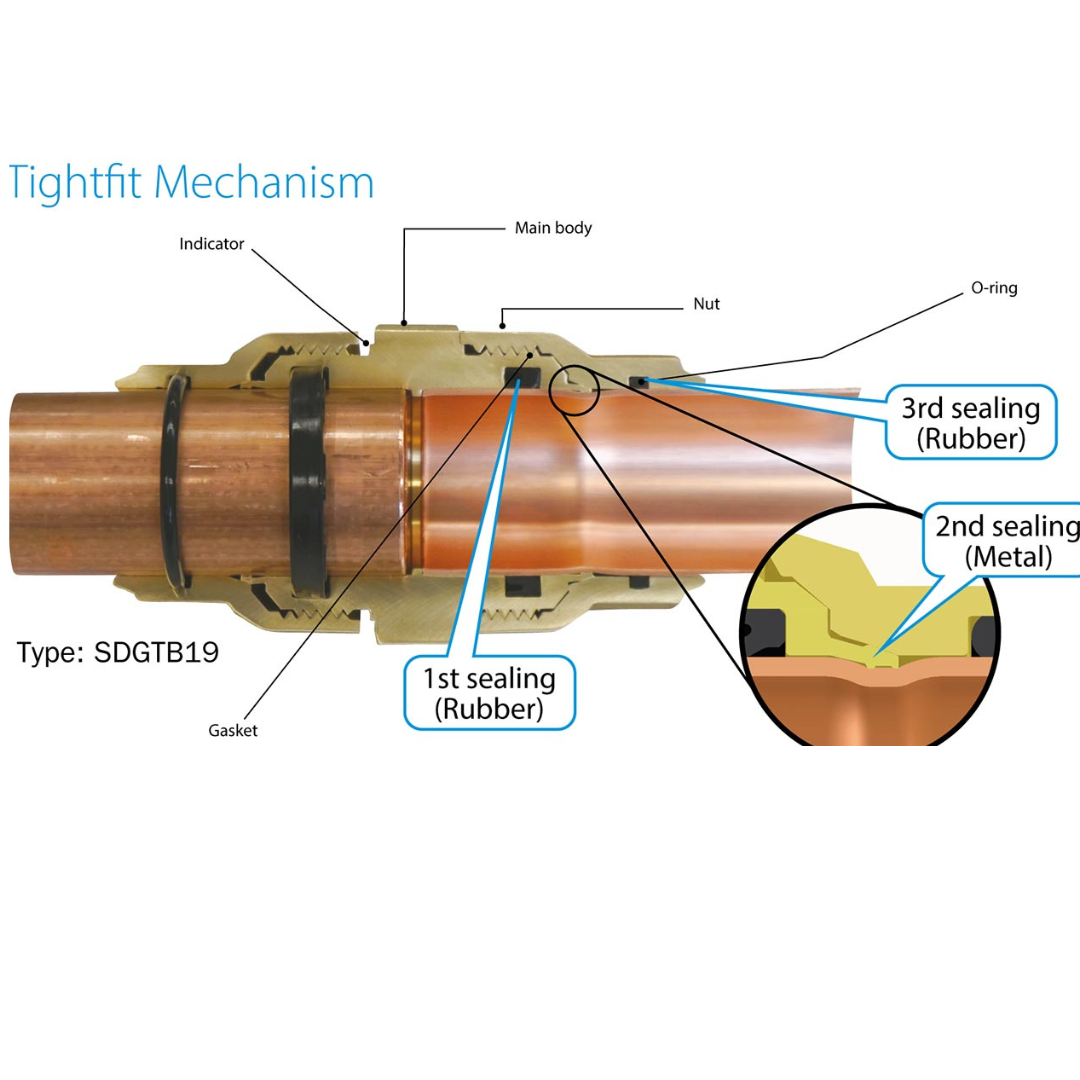

mECHANISM
Daikin DGT is a non-brazed connection suitable for piping. Pipes can be joined easily and quickly without brazing or using and special tools. It meets stringent safety requirements and provides leak-free tightness amount various substantial benefits.
1) Double edged claw catches the pipe to form tight mechanical sealing
2) 3 types of connectors suitable for most pipe sizes and applications
3) Unique mechanical and resin sealing prevent gas leak completely
4)It is durable up to 4 times (17.2Mpa) of max. operating pressure.
